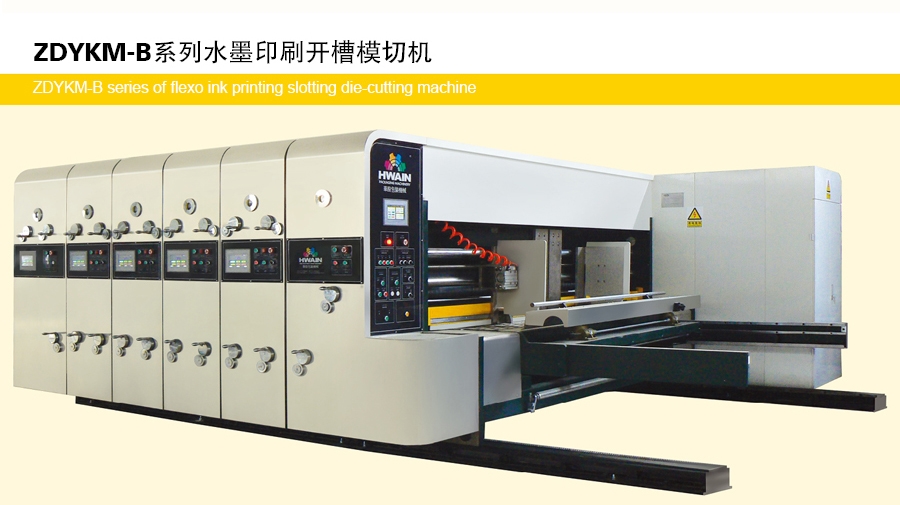

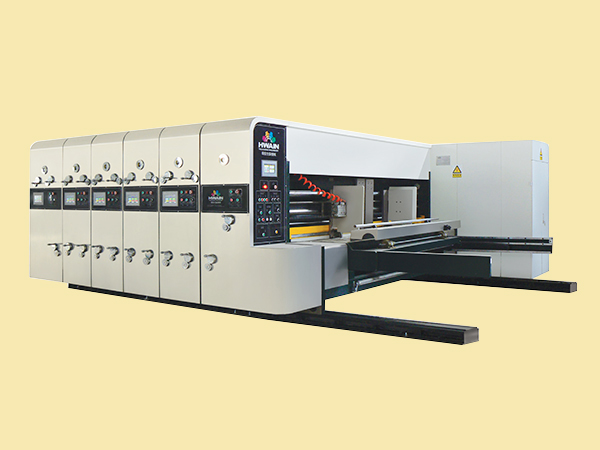

本机简介:
◎ 本机由送纸部、印刷部、烘干部、上光油部、开槽部、模切部六部分组成并可根据用户生产情况随意组合。
◎ 本机可以与纸板上料机、联动线、自动捆扎机、码垛机组成全PLC控制生产流水线,或者与接料机、边角清除机组成普通全自动生产流水线。
◎ 送纸部采用前缘送纸系统,也可选择伺服前缘送纸系统。
◎ 进纸方式可选择无轴进纸或有轴进纸。
◎ 配有高压吸尘、静电除尘、毛刷或毛刷轴三级除尘系统。
◎ 网纹辊可配胶辊或刮刀两种上墨方式,并且可快装组合。
◎ 版辊横移PLC控制电动调整。
◎ 传动齿轮采用优质合金钢,渗碳淬火后精磨制造。
◎ 齿轮采用喷淋润滑和润滑脂集中供油润滑系统,并具备油路平衡功能。
◎ 主机、风机、相位电机、拉板均采用PLC触摸屏多功能控制。
◎ 开槽部采用PLC触摸屏控制可实现纸箱数据输入一键成型,并具有订单储存功能。
Brief Introduction:
◎ This machine is composed of six units, which are feeding unit, printing unit, drying unit, varnish unit, slotting unit, die cutting unit and it can be freely combined according to user’s production situation.
◎ This machine can make up a full PLC control production line with cardboard feeder, binding line, automatic strapper, stacker or make up normal automatic production line with stacker, corner cleaner machine.
◎ Feeding unit adopts lead edge feeder or servo lead edge feeder.
◎ The feeding adopts without shaft feeding or shaft feeding.
◎ Equipped with high pressure vacuum device, electrostatic dust, brush or brush shaft three stage dust removal system.
◎ Anilox roller can be equipped with rubber roller and doctor blade two ways of supplying inking, and be quickly combined.
◎ Printing roller lateral movement is controlled by PLC and electric adjustment.
◎ Transmission gear adopts high quality alloy steel, fine grinding is manufactured after carburizing and quenching.
◎ Gear adopts spray lubrication and lubricating grease centralized oil supplied lubricating system, and has oil line balance function.
◎ Main machine, blower, phase motor and pull plate are all used PLC touch screen multifunction controlling system.
◎ The slotting until adopts PLC touch screen to control the data input of the carton, and has the order storage function.
技术参数 Specification:
产品系列 | Product series | 1200系列/1400系列 | 1600系列/1800系列 | 2200系列/2500系列 | |||||||||
| 1420 | 1424 | 1428 | 1432 | 1824 | 1828 | 1832 | 1836 | 2528 | 2532 | 2536 | 2540 | |
机械设计速度(m/min) | Machanical design speed | 300 | 300 | 300 | |||||||||
最大进纸尺寸(mm) | Max.feeding size | 1400*2150 | 1400*2550 | 1400*2950 | 1400*3350 | 1800*2550 | 1800*2950 | 1800*3350 | 1800*3750 | 2500*2950 | 2500*3350 | 2500*3750 | 2500*4200 |
最小进纸尺寸(mm) | Min.feeding size | 320*650 | 430*750 | 540*950 | |||||||||
最大印刷面积(mm) | Max.printing size | 1400*2000 | 1400*2400 | 1400*2800 | 1400*3200 | 1800*2400 | 1800*2800 | 1800*3200 | 1800*3600 | 2500*2800 | 2500*3200 | 2500*3600 | 2500*4000 |
标准印版厚度(mm) | Standard printing plate thickness | 7.2 | 7.2 | 7.2 | |||||||||
套色精度(mm) | Color accuracy | ≤0.5 | ≤0.75 | ≤1.0 | |||||||||
金属上墨辊(目数) | Metal ink roll(mesh number) | 250-280 | 250-280 | 250-280 | |||||||||
陶瓷上墨辊目数(选配) | Ceramic ink roller on the mesh(optional) | 300-700 | 300-700 | / | |||||||||
上墨方式 | Ink on the way | 橡胶轴 | 橡胶轴 | 橡胶轴 | |||||||||
|
| 刮刀(选配) | 刮刀(选配) | / | |||||||||
送纸方式 | Type of paper-feeding | 前缘+滚轮送纸 | 前缘+滚轮送纸 | 前缘+滚轮送纸 | |||||||||
|
| 前缘+全程吸附送纸(选配) | / | / | |||||||||
印刷滚筒横移(mm) | Printing roller sway | ±6 | ±6 | ±6 | |||||||||
最大模切尺寸 | Max.die cutter size | 1400*1950 | 1400*2350 | 1400*2750 | 1400*3150 | 1800*2350 | 1800*2750 | 1800*3150 | 1800*3550 | 2500*2350 | 2500*2750 | 2500*3150 | 2500*3550 |
最小开槽间距 (mm) Min. slotting distance | 正刀 Positive cut | 185*185*185*185 | / | / | |||||||||
| 反刀 Reverse cut | 270*60*270*60 | 290*60*290*60 | 315*60*315*60 | |||||||||
最大槽深(mm) | Max.slotting depth | 350 | 450 | 625 |
